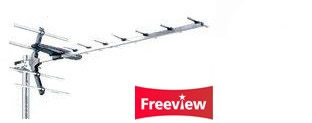

Antiference RX12

Band		UHF Group W
Frequency Range		470-862 MHz
Channels		21-68
Elements		12
Gain		12.9 dBi
Front To Back Ratio		17 dB
Beam Width Hor		23 Degrees
Windload		61 N
Weight		0.46 kg

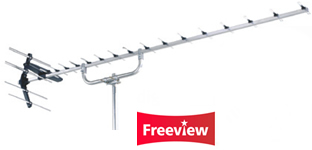

Antiference RX20

Band		UHF Group W
Frequency Range		470-862 MHz
Channels		21-68
Elements		20
Gain		14.9 dBi
Front To Back Ratio		19 dB
Beam Width Hor		23 Degrees
Windload		61 N
Weight		0.81 kg

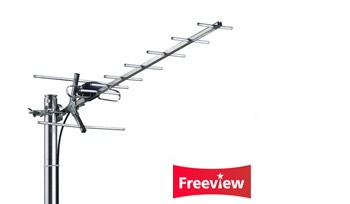

Triax Yagi 10 Wideband

Band		UHF Group W
Frequency Range		470-862 MHz
Channels		21-68
Elements		10
Gain		12.5 dBi
Front To Back Ratio		> 21 dB
Beam Width Hor		+- 23 Degrees
Windload		22 N
Weight		0.65 kg

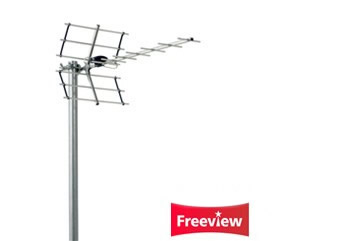

Triax Yagi 14 Wideband
(Supergain)

Band		UHF Group W
Frequency Range		470-862 MHz
Channels		21-68
Elements		14
Gain		13.5 dBi
Front To Back Ratio		> 25 dB
Beam Width Hor		+- 21 Degrees
Windload		54 N
Weight		0.75 kg

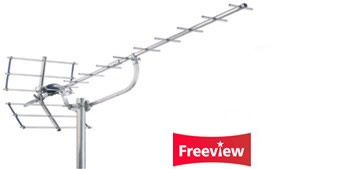

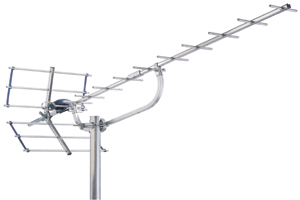

Triax Yagi 18 Wideband
(Supergain)

Band		UHF Group W
Frequency Range		470-862 MHz
Channels		21-68
Elements		18
Gain		14.5 dBi
Front To Back Ratio		> 25 dB
Beam Width Hor		+- 18 Degrees
Windload		59 N
Weight		1.37 kg

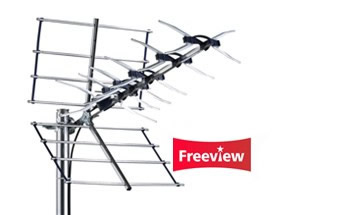

Triax Unix 32W

Band		UHF Group W
Frequency Range		470-862 MHz
Channels		21-68
Elements		32
Gain		12.5 dBi
Front To Back Ratio		24 dB
Beam Width Hor		+- 20 Degrees
Windload		58 N
Weight		1.45 kg

CAI Benchmark Standard 3 Aerial

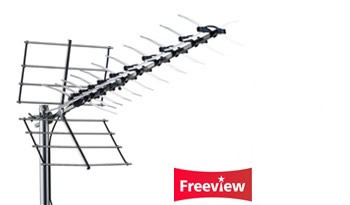

Triax Unix 52C/D - W
(Anti-Ghost)

Gain		14.5 dBi
Front To Back Ratio		> 25 dB
Beam Width Hor		+- 15 Degrees
Windload		96 N
Weight		1.63 kg
